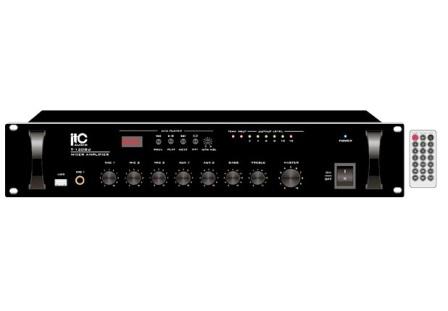

T-60BU ; T-120BU ; T-240BU

Model	T-60BU	T-120BU	T-240BU
Rated Power Output	60W	120W	240W
Speaker Outputs	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input
MIC 2, 3:±2.5mV/2KΩ, Balanced XLR input
MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input
EMC: 775mV/10KΩ, Unbalanced RCA input
Output Sensitivity & Impedance	MIX OUT: 1000mV/470Ω, Unbalanced RCA output
Tone	Bass:±10dB at 100Hz
Treble:±10dB at 10KHz
Frequency Response	50Hz~16KHz(+1dB, -3dB)
S/N Ratio	MIC 1,2,3: 66dB; AUX 1,2: 80dB
THD	Less than 0.5% at 1KHz, 1/3 rated power
Muting Function	MIC 1 overrides other input signals with 0-30dB attenuation
Tone Control	MIC2, 3 XLR,±2.5mV~±75mV at 30dB
Crosstalk	≤50dB
MP3 Support Format	MP3
Maximum Support Capacity	8GB USB drive
Phantom Power	+48V, with LED indicator
Cooling	Fan automatically start up when temp reaches 55â„ƒ
Protection	High temp, overload & short-circuit
Power Supply	~110V/60Hz or ~230V/50Hz or DC 24V
Power Consumption	100W	200W	400W
Weight	7.2Kg	9.5Kg	16.8Kg
Dimensions	484x300x88mm	484x350x88mm
Finish	Panel: aluminum plate, black Case: steel plate, black

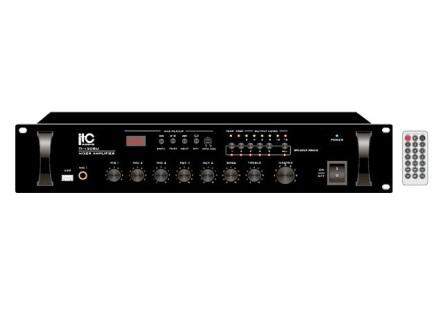

TI-60BU ; TI-120BU ; TI-240BU

Model	TI-60BU	TI-120BU	TI-240BU
Rated Power Output	60W	120W	240W
Speaker Outputs	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input
MIC 2, 3:±2.5mV/2KΩ, Balanced XLR input
MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input
EMC: 775mV/10KΩ, Unbalanced RCA input
Output Sensitivity & Impedance	MIX OUT: 1000mV/470Ω, Unbalanced RCA output
Tone	Bass:±10dB at 100Hz, Treble:±10dB at 10KHz
Frequency Response	50Hz~16KHz( +1dB, -3dB)
S/N Ratio	MIC 1, 2, 3: 66dB; AUX 1, 2: 80dB
THD	Less than 0.5% at 1KHz, 1/3 rated power
Muting Function	MIC 1 overrides other input signals with 0-30dB attenuation
Tone Control	MIC2, 3 XLR,±2.5mV~±75mV at 30dB
Crosstalk	≤50dB
MP3 Support Format	MP3
Maximum Support Capacity	8GB USB drive
Phantom Power	+48V, with LED indicator
Cooling	Fan automatically start up when temp reaches 55â„ƒ
Protection	High temp, overload & short-circuit
Power Supply	~110V/60Hz or ~230V/50Hz or DC 24V
Power Consumption	100W	200W	400W
Weight	7.2Kg	10Kg	17.5Kg
Dimensions	484x300x88mm	484x350x88mm
Finish	Panel: aluminum plate, black Case: steel plate, black

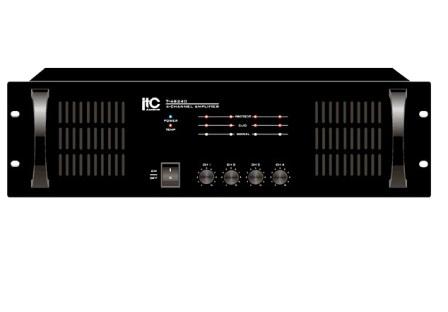

T-4S60 ; T-4S120 ; T-4S240

Model	T-4S60	T-4S120	T-4S240
Rated Power Output	4 x 60W	4 x 120W	4 x 240W
Speaker Outputs	70V,100V & 4ï½آ‍16Ω
Input	775mV/0dB
Frequency Response	50Hzï½آ‍15KHz(±2dB)
S.N. Ratio	Better than 90dB
THD	Less than 0.5% at 1KHz,1/3 rated power
Controls	Power switch, volume control
Indicators	Power, signal, protect and peak LEDs
Protection	AC fuse, short-circui, clipping and high temperature
Power Supply	ï½آ‍110V/60Hz or ï½آ‍230V/50Hz
Power Consumption	350W	700W	1500W
Weight	16.8Kg	20.5Kg	26.6Kg
Dimensions	484x490x88mm	484x490x132mm
Finish	Panel:aluminum plate Case:steel plate

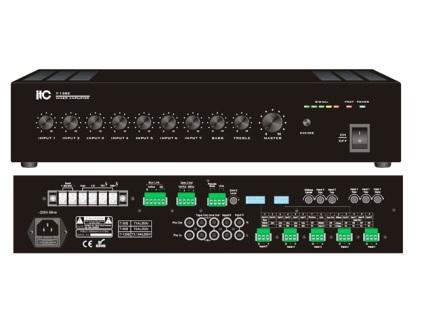

T-60E ; T-120E

Model	T-60E	T-120E
Rated Power	60W	120W
Power Consumption	100W	200W
Speaker Outputs	70V, 100V & 4Ω
Frequency Response	50Hz~15KHz(±2dB)
Frequency Distortion	<1% at rated power(1KHz)
Sensitivity	Input 1	Line/Tel: 316mV(-10dBV) 10KΩ(600Ωoptional/transformer)
Mic: 3.16mV~316mV
Input 2~4	Line: 316mV(-10dBV) 10KΩ
Mic: 3.16mV~316mV
Input 5~6	Line: 300mV/100mV(-10dBV/-20dBV) selectable
Output	Main	Transformer coupled, balanced, 70V, 100V & 4Ω
Zone 2~8Ω	Unbalanced, 1W
Zone 2~600Ω	Balanced, 1.5V
S/N	MIC	>55dB
Line	>75dB
Telephone	75dB
Tone Control	Bass	±10dB@100Hz
Treble	±10dB@10KHz
Indicators	Power,
Power Supply	~110V/60Hz
Dimensions	484x300x88mm	484x400x132mm
Net Weight	13Kg	15Kg
Gross Weight	14.2Kg	16Kg

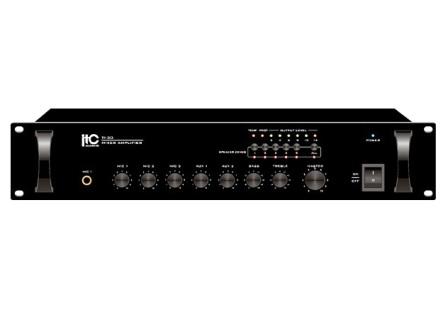

TI-120
