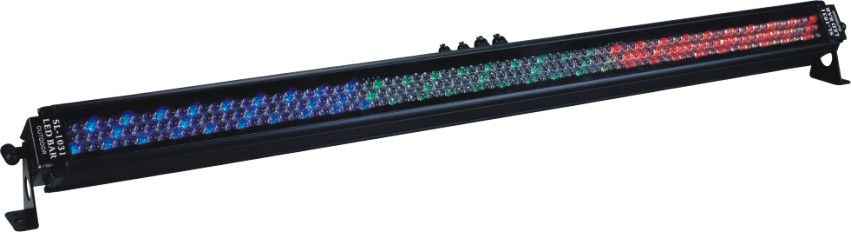

Source
Intensive brightness LEDs
252 PCS 10mm LEDs (108 red ,72 green,72 blue)
60-100 thousand hrs Rated Life
Beam angle
35°beam angle of each LED
Colours
16,7million colours (24 bit)
The LEDs used are a mixture of red,green, and blue to produce, via RGB electronic mixing.
White balance pre-programmed via LED control panel
Dimmer,Strobe
Electronic dimmer for light output adjustment
from 0 to 100% (No colour variation)
High speed white or full colour strobe,flash
rate 1-13fps
Mechanical Specification
Height:105mm Width:1100mm Depth:75mm
Weight:4.5Kg (9.2 lbs)
Shipping size: (6pcs/master carton): 109×39×26 cm
Gross/weightï¼ڑ30Kg
Thermal
Maximum ambient temperature:40℃
Maximum housing temperature:60℃
Control
Protocol: USITT DMX-512
Control channels: 14
Control options: DMX,Auto-trigger
Operation modes: Master/Slave,Stand alone,Sound
Data in/out: Locking 3-pin XLR
Power supply in/out: Locking 3-pin
Input voltage: 90-250V AC,47-63Hz
Fuse: T2A
Max. Power Consumption: 50VA

• 25° lens
• 7 Luxeon Blue LEDs - 3W
• 18 Luxeon Green LEDs - 3W
• 24 Luxeon Red LEDs - 1W
• Luminous flux 2.800 Lumens
• Colour temperature: 6.000 °K (variable)
• Consumption: 180W
• LEDs life: 100.000 hours at maximum power.
• 13 DMX channels
• Elliptical 10°x22° vertical
• Elliptical 10°x22° horizontal

DIMENSIONS
•(LxDxH) 485 x 375 x 229

WEIGHT
•15,5 Kg

Source
Intensive brightness LEDs
36W RGB LEDs
60-100 thousand hrs Rated Life
Beam angle
45°beam angle of each LED
Dimmer,Strobe
Electronic dimmer for light output adjustment
from 0 to 100% (No colour variation)
High speed white or full colour strobe,flash
rate 1-13fps
Mechanical
Specification
Height:176mm (7")
Width:294mm (11.6")
Depth:136mm (5.4")
Weight:2.5Kg (5.5 lbs)
Thermal
Maximum ambient temperature:40℃
Maximum housing temperature:60℃
Control
Protocol: USITT DMX-512
Control channels:  5
Control options: DMX,Auto-trigger
Operation modes: Master/Slave,Stand alone,Sound
LED Control panel:Fixture addressing & parameter settings
Manual control of all DMX channels: via LED control panel
Data in/out: Locking 3-pin XLR
Power supply
Input voltage: 100-240V AC,47-63Hz
Fuse: T 1A
Max. Power Consumption: 40VA
COLORS
16,7million colours (24 bit)
The LEDs used are a mixture of red,green,
and blue to produce,via RGB electronic mixing.
White balance pre-programmed via LED control panel.

*Source
Intensive brightness LEDs
18W  RGB LEDs
60-100 thousand hrs Rated Life
*Beam angle
17 beam angle
*Dimmer,Strobe
Electronic dimmer for light output adjustment
from 0 to 100% (No colour variation)
High speed white or full colour strobe,flash
rate 1-13fps
*Mechanical Specification
Height:416mm (16.4")
Width:191mm (7.52")
Depth:126mm (4.96")
Weight:3Kg (6.6 lbs)
*Thermal
Maximum ambient temperature:40
Maximum housing temperature:60
*Control
Protocol: USITT DMX-512
Control channels: 5CH
Control options: DMX,Auto-trigger
Operation modes: Master/Slave,Stand alone,Sound
LED Control panel:Fixture addressing & parameter settings
Manual control of all DMX channels: via LED control panel
Data in/out: Locking 3-pin XLR
*Power supply
Input voltage: 90-250V AC,47-63Hz
Fuse: T 1A
Max. Power Consumption: 20VA
*COLORS
16,7million colours (24 bit)
The LEDs used are a mixture of red,green,
and blue to produce,via RGB electronic mixing.
White balance pre-programmed via LED control panel

Source
Intensive brightness LEDs
72W RGB LEDs
60-100 thousand hrs Rated Life
Beam angle
45°beam angle of each LED
Dimmer,Strobe
Electronic dimmer for light output adjustment
from 0 to 100% (No colour variation)
High speed white or full colour strobe,flash rate 1-13fps
Mechanical Specification
Height:292mm (11.5")
Width:345mm (13.5")
Depth:120mm (4.7")
Weight:3.5Kg (7.7 lbs)
Thermal
Maximum ambient temperature:40℃
Maximum housing temperature:60℃
Control
Protocol: USITT DMX-512
Control channels:  5
Control options: DMX,Auto-trigger
Operation modes: Master/Slave,Stand alone,Sound
LED Control panel:Fixture addressing & parameter settings
Manual control of all DMX channels: via LED control panel
Data in/out: Locking 3-pin XLR
Power supply
Input voltage: 100-240V AC,47-63Hz
Fuse: T 3.15A
Max. Power Consumption: 72VA
COLORS
16,7million colours (24 bit)
The LEDs used are a mixture of red,green,
and blue to produce,via RGB electronic mixing.
White balance pre-programmed via LED
control panel
