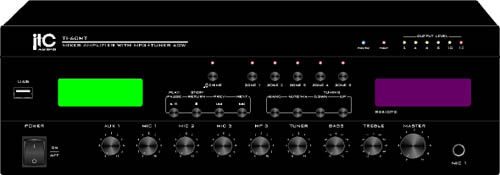

Model    TI-60MT    TI-120MT    TI-240MT
Rated Power Output    60W    120W    240W
Speaker Outputs    70V, 100V & 4ï½‍16Ω
Input    MIC 1, 2, 3: 5mV 600Ω (MIC1: phone jack balanced, MIC2, 3 XLR balanced with phantom power)
AUX 1, 2: 250mV/15KΩ, Unbalanced
EMC: 250mV/15KΩ, Unbalanced
Tone    Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
Frequency Response    50Hzï½‍15KHz (±2db)
S/N Ratio    MIC 1, 2, 3: 66dB，AUX 1, 2: 80dB
T.H.D    Less than 0.5% at 1KHz, 1/3 rated power
Crosstalk    MIC: 80dB; AUX 85dB
Muting Function    MIC 1 over other input signals with 0ï½‍30dB attenuation
EMC ove all inputs except MIC 1
Controls    Individual gain controls, power switch
Indicators    Power, output level meter, protect
Protection    AC fuse, short-circuit and high temperature
TUNER
Frequency Response    FM  87-108MHz          AM  522-1611KHz
Sensitivlty    FM  = 20uV                 AM  = 6.0mV/m
Signal / Noise Ratio    FM  = 40dB                 AM   = 36dB
MP3
MP3 Freq Response    30Hzï½‍20KHz
MP3 Store Method    Download from PC (memory card 1GB)
MP3 Store Format    Compatible FAT12, FAT16, FAT32
ELSE
Power Supply    ï½‍110V/60Hz or ï½‍230V/50Hz
Power Consumption    120W    240W    350W
Dimension    444x421x132mm
Weight    10Kg    11.6Kg    13.7Kg

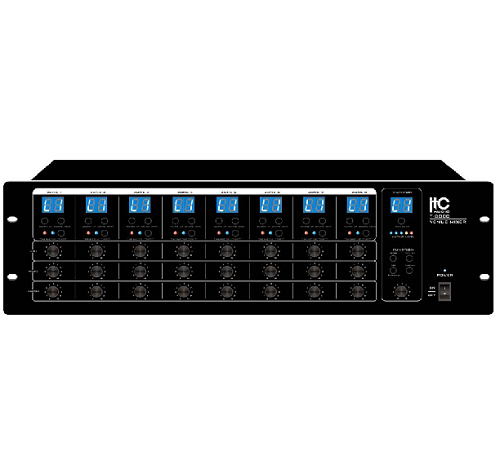

Model T-8000

Line Input Line 1-8: 300mV/10KΩ

Microphone 1 5mV/600Ω

Remote Paging Station 500mV/10KΩ

Output 0.775V/600Ω

Frequency Response MIC 80Hz~18KHz +1/-3dB line: 0Hz~20KH+1/-3dB

Microphone S/N Ratio >65dB

Line S/N Ratio >85dB

Degree Of Separation >40dB

Crosstalk >65dB

THD <0.07%

Indicator Power, Mic1, paging busy & monitor output

Priority Mic1, voice alarm, local mic paging, remote zone paging, line 8, line 1-7

Communication Speed 4800bps

Communication Port RJ45

Communication Protocol RS485

Power Consumption 20W

Power Supply ~110V/60Hz or ~230V/50Hz & DC 24V

DC Input DC 24V

Dimensions 484×400×132mm

Weight 6Kg

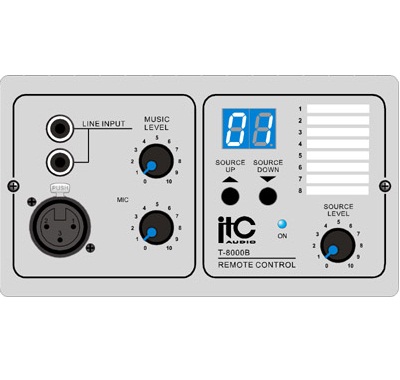

Model:T-8000B

Serial Communication Speed:4800bps

Serial Communication Distance:Maximums 1Km

MIC Input Sensitivity:5mV/600Ω

AUX Input Sensitivity:350mV/10KΩ

Audio Output:0dB/600Ω

Frequency Response:100Hz~8KHz (±1dB)

S/N Ratio:MIC  Better than 65dB Aux  Better than 75dB

THD:Less than 0.1% at 1KHz

Controls:Volume control

Power Supply:DC 24V

Power Consumption:5W

Weight:500g

Dimensions:86x146x33mm

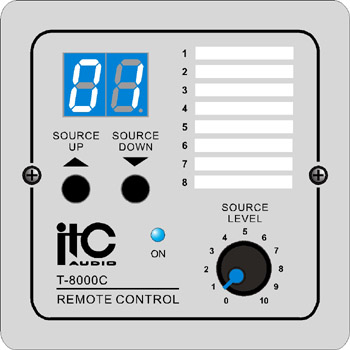

Model:T-8000C

Serial Communication Speed:4800bps

Serial Communication Distance:Muximum 1Km

Controls:Volume control

Power Supply:DC 24V

Power Consumption:5W

Weight:300g

Dimensions:86x86x33mm

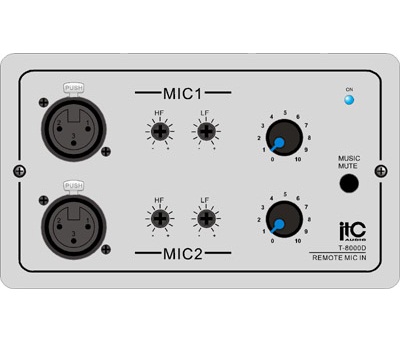

Model:T-8000D

Serial Communication Speed:4800bps

Serial Communication Distance:Maximums 1Km:MIC Input Sensitivity 5mV/600Ω

Audio Ooutput:0dB/600Ω

Frequency Response:100Hz~18KHz (±1dB)

S/N Ratio:MIC  Better than 65dB

THD:Less than 0.1% at 1KHz

Controls:Volume control

Power Supply:DC 24V

Power Consumption:5W

Weight:150g

Dimensions:86x146x33mm

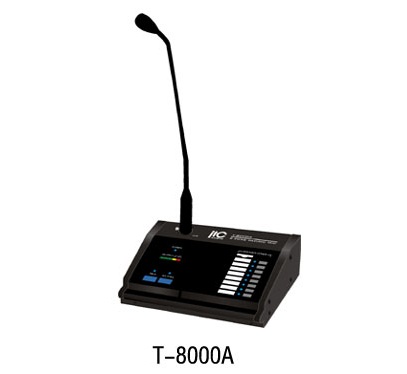

Model :T-8000A

MIC :Condenser Microphone

Frequency Response:50Hz~18KHz (±2dB)

S/N Ratio:Better than 75dB

THD:Less than 0.1% at 1KHz,

Signal Output:0.775V/600c

Mic Input:5MV/600Ω

Indication:Individual zone, all zone, busy,paging, power, output level indicators

Protection:DC +24V/2A  Revert fuse protection

Power Supply:DC 24V

Power Consumption:1.5W

Weight:2.5Kg

Dimensions:180x145x58mm
