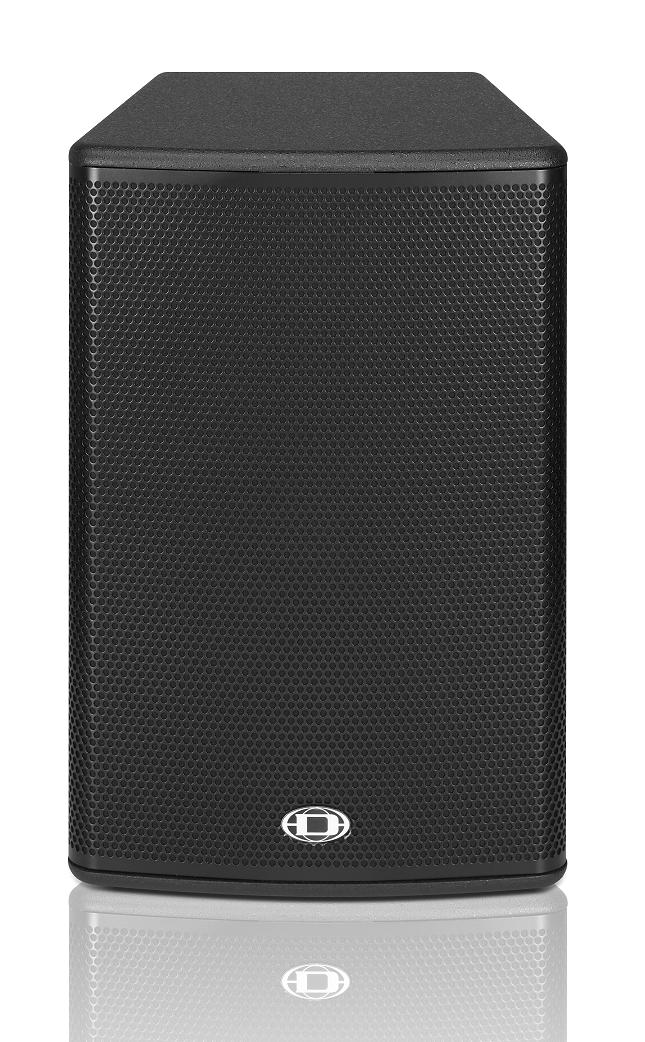

the C 15.2, DYNACORD is offering an extremly compact, trapezoidal 15\"
two-way full-range cabinet boasting very good power handling (500W continuous / 2000W peak) and sensitivity of 100 dB 1W / 1m for applications requiring an extended low end.
Here, an SMX 2151 woofer is used, whilst in the high frequency range a DH3 compression driver in a 90° x 50° constant directivity horn reproduced everything above 1550 Hz.
Flying points for eyebolts are provided to permit either vertical or horizontal suspension. Also available as an option is the DC-MBC15-UMH mounting bracket, which is compatible with the DYNACORD PI-Easy system and supports up to three levels of orientation.
To extend the low bass performance, a Sub 1.18 subwoofer connected in parallel is recommended.

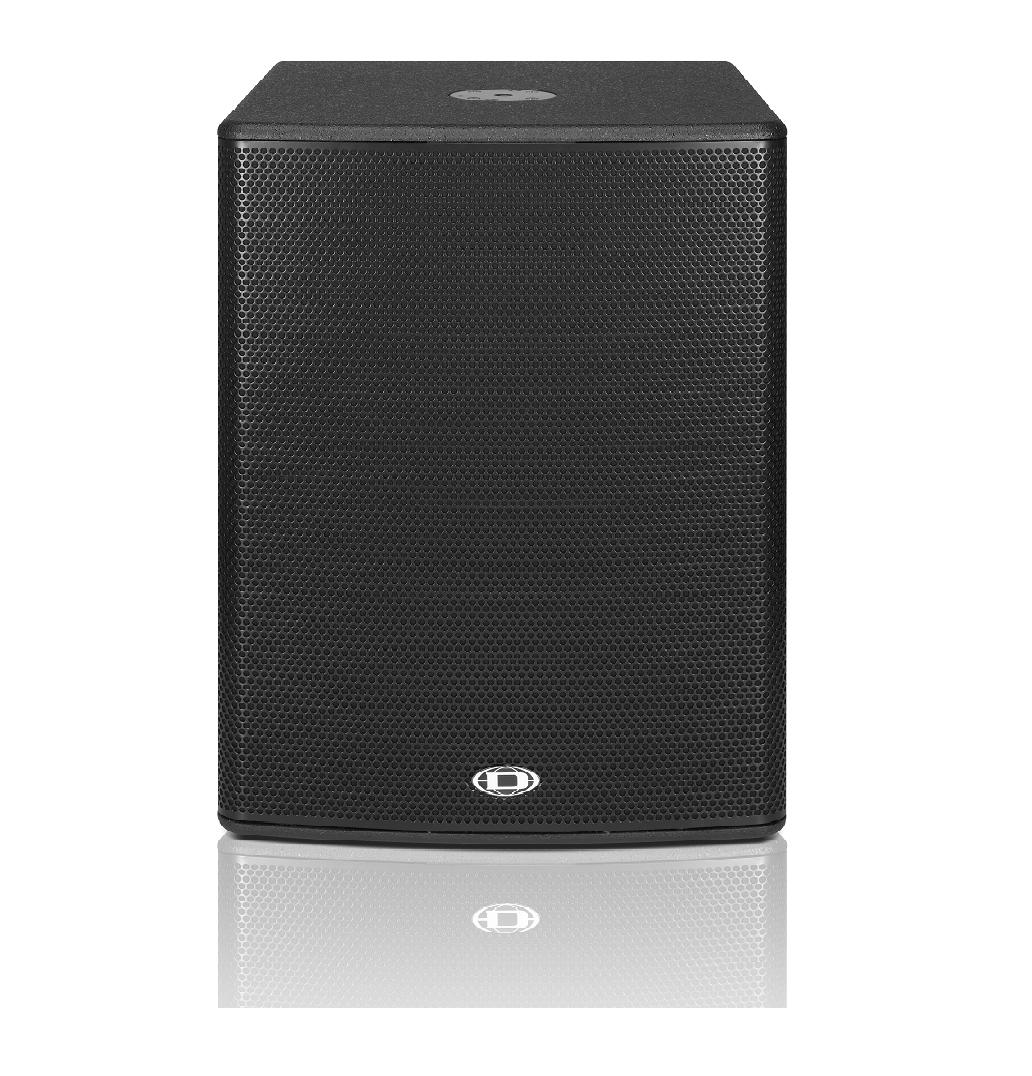

Sub 1.18
The Sub 1.18 is the ideal bass extension for the Corus C 12.2 or C 15.2 full-range cabinets.
In the low frequency range between 38 Hz and 250 Hz a Electro-Voice EVS-18S woofer in direct-radiator bass-reflex design produce an max. SPL of 130 dB.
Thanks to their low-pass filter, the Sub 1.18 can be operated simply in parallel mode to existing full-range cabinets. Also recommended, naturally, is the combination with the DSP 260 or DSP 600 and power amplifiers from the SL or LX series for the creation of active two-way systems.

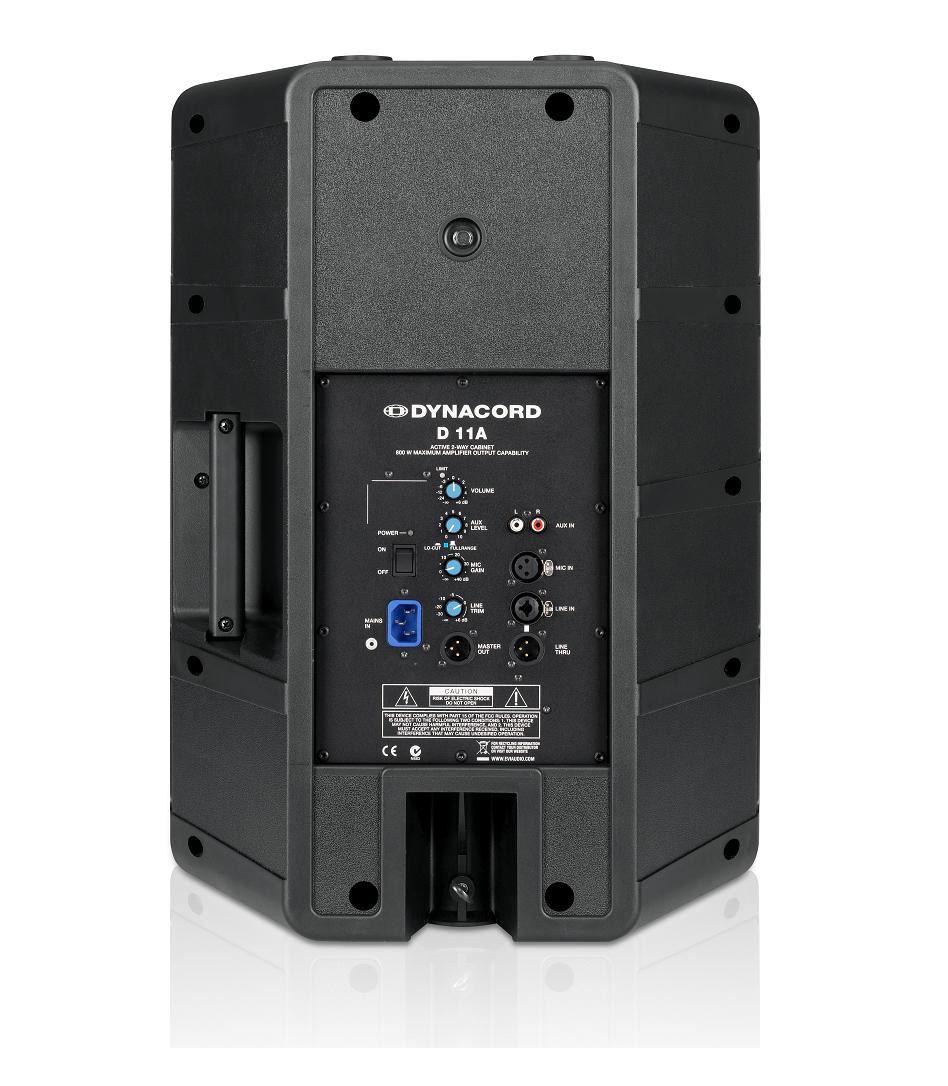

D 11A
The D 11A is a conveniently equipped active 12\" / 1\" fullrangebox offering integrated Class-D amplifiers, an electronic crossover and loudspeaker equalization.
For the low and high frequency ranges 2x 200 W RMS are available. The maximum overall amplifier output comes to 800 W. The Frequency range is 48 Hz - 20 kHz and the max. SPL is 126 dB / 1m.
The Line input is implemented as an XLR/jack combo socket, the controllable Stereo-AUX channel with RCA/cinch sockets permits e.g. the direct connection of CD or MP3 players.
For operation with powered subwoofers, a switchable low-cut filter is provided. When combined with active subwoofers, ultra-compact active 3-way high powered systems can be created very simply for a multitude of applications in live music and fixed installation sectors.
The extensive range of optional accessories allows virtually unlimited use in fixed installations or flown configurations.
