MATERIEL SONORISATION>>Public adresse / Ligne 100 Volts > Haut Parleurs Apart Audio

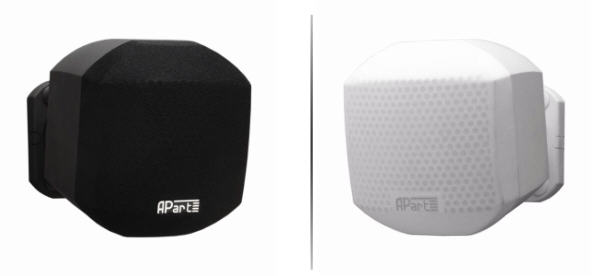

	MASK2 [ BL / W ] Program power: 50 Watts RMS (using a 150 Hz/12 dB/octave highpass filter.) Recommended amplifier power / channel: 10 - 110 Watts (with matching subwoofer) Dimensions H x W x D mm: 94 x 82 x 108 (without mounting bracket) Distance from wall: approx 30mm using included brackets Shipping weight: 1300g (1 speaker pair with accessories) Net weight: 440g Shipping dimensions: 130 x 146 x 310 mm Accessories (supplied): Mounting bracket, mounting hardware, screws and screw covers. IP50

	MASK4 [ BL / W ] Type : 2-way HiFi Pro, sealed box Cabinet : Enforced PP4 ABS Woofer : 4.2” HD Type Tweeter : 1” HD silk dome on Varithroat horn Impedance : 16 Ohm / 100V Trafo power tap. : 2,5 - 5 - 10 - 20 watt (4k - 2k - 1k - 500 Ohm) AES Rated : 50 watt Music - Program : 70 watt Dynamic Peak (low-cut) : 200 watt Protection : Auto-Reset 3-step Protection Guard SPL 1 Watt/1M : 89 dB SPL Max Peak : 116 dB Freq. range : 80 Hz - 20 kHz Speaker connections : Push terminals Dispersion : 5° downtilt angle / 120° H x 80° V IP rating : 64 Thread size mounting point : M8 Dimensions (HxWxD) : 223 x 129 x 130 mm Weight : 2.05 Kg

	MASK6T [ W / BL ] Type : 2-way HiFi Pro, sealed box Cabinet : Enforced PP4 ABS Woofer : 6.5” HD Type Tweeter : 1” HD silk dome on Varithroat horn Impedance : 16 Ohm Transfo Power Tap. : 6-15-30-60watt (1.66K,666.6K,333.3K,166.6K ohm) RMS Power 16 ohm AES Rated : 150 watt Music - Program : 200 watt Dynamic Peak (low-cut) : 400 watt Protection : Auto-Reset 3-step Protection Guard SPL 1 watt/1M : 91 dB SPL Max peak : 120 dB Freq. range : 65 Hz - 20 kHz Dispersion : Push terminals 5° downtilt angle / 120° H x 80° V IP rating : 64 Thread size mounting point : M12 Dimensions (HxWxD) : 315 x 175 x 195 mm Weight : 3.95 Kg

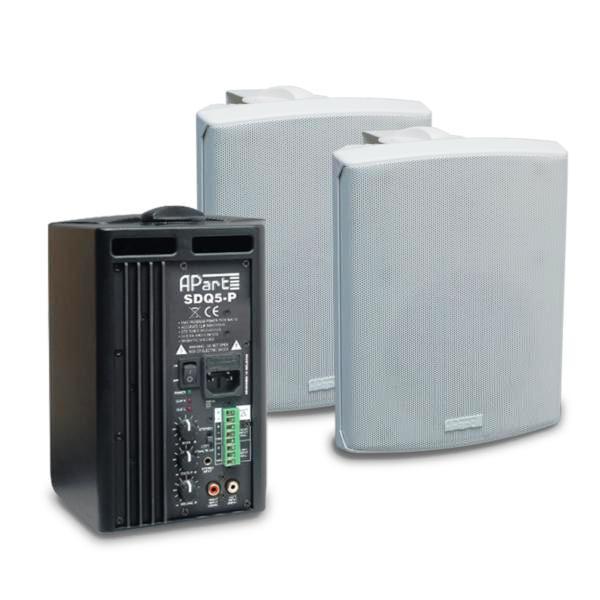

	SDQ5P-W • Type: Active 2-way HiFi Pro, DTB Reflex tuning • Cabinet: Enforced Poly Plastic • Woofer: 5.25” HiFi PP Shielded • Tweeter: 1” mylar shielded • Inputs • RCA - Stereo Mini Jack: 500 mV, 22 Kohm • Balanced Euroblock: 500 mV, 22 Kohm • Tone Control • Bass: ±12 dB at 80 Hz • Treble: ±12 dB at 12 kHz • RMS Power in 4 Ohm • AES Rated: 2 x 30 Watts • Dynamic PMPO: 2 x 200 Watts • THD (Total Harmonic Distortion): < 0.07% • Signal to Noise Ratio: > -90 dB • SPL 1 watt/1 m: 91 dB • SPL Max peak: 111 dB • Frequency Range: 45Hz - 20 kHz • Dispersion: 120°H x 100° V • IP rating: 40 • Dimensions : 252 H x 182 W x 170 D mm (bracket not included) • Weight: 5.75 Kg, brackets include

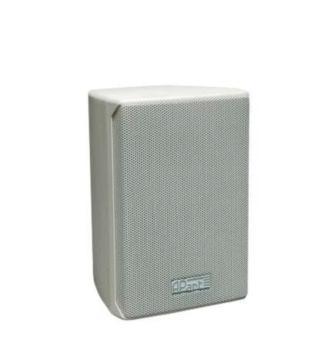

	SDQ3T-W • Type : 2-way HiFi Pro, sealed box • Cabinet : Enforced Poly plastic • Woofer : 3.2\" CP type • Tweeter : 1\" mylar ferro cooled • Impedance : 16 Ohm • Transfo Power Tappings : 1.5-3-6 Watts • RMS Power 16 Ohm • AES Rated : 35 Watts • Music - Program : 50 Watts • Dynamic Peak (lo-cut) : 70 Watts • Protection system : Auto-Reset Guard • SPL 1 watt/1 m : 86dB • SPL Max peak : 104dB • Frequency Range : 90Hz - 20KHz • Speaker connectors : Push terminals • Dispersion : 120°H X 100°V • IP rating : 50 • Dimensions 152 (h) x 105 (w) x104 (d) mm • Weight : 0.85Kg

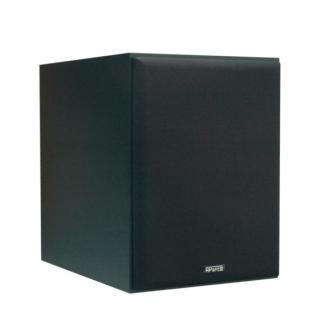

	SUBA165 (W,B) Type: Active processed bass reflex Cabinet: MDF Wood Woofer: 8” HD type Impedance: 4 Ohm RMS Power: Build in amplifier AES Rated: 100 watt Music - Program: 140 watt Dynamic peak: 170 watt SPL 1 watt/1M: 89 dB SPL Max peak: 109 dB Freq. Range: 30 - 180 Hz (Adjustable) Inputs RCA 500 mV LS Terminal 10 - 70 volt Outputs LS Terminal Passive lo-cut 120 Hz Dimensions: 362 x 261 x 405 mm Weight: 12.7 Kg

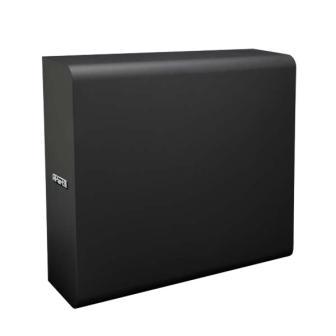

	SUBLIME-BL Speaker type: 6.5 inch dual coil woofer Cabinet type: 6 th order bandpass Nominal impedance: 2 x 8 ohms Frequency range with 2 x MASK 2: 50 - 20000 Hz System power with 2 x MASK 2: 2 x 120 watts @ 8 Ω Sensitivity: 85 dB/1W/1m Max SPL: 106 dB Cabinet material: MDF Program power SUBLIME only: 2 x 80 watts @ 8 Ω (used in active system) Frequency range SUBLIME only: 50 - 200 Hz (used in active system) Dimensions : H x W x D: 420 x 470 x 120 mm Net weight: 8 Kg Shipping weight: 11.5 Kg

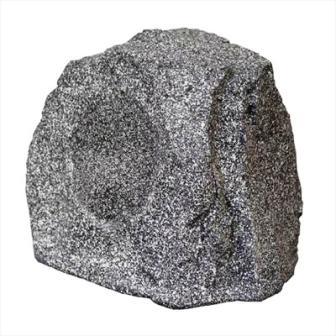

	ROCK20 Type : 2-way Woofer: 6.5\" enforced polypropylen, rubber edge Tweeter: 1\" mylar Impedance: 8 Ohm 100V Trafo Power Tappings : 2,5 - 5 - 10 - 20W Rated power RMS : 20 W in 100 Volt Music power RMS : 32 W in 100 Volt SPL 1w/1m: 92dB Maximum SPL : 105 dB Frequency Range : 60 Hz - 20 kHz Dispersion : 1KHz: 180° 4KHz: 80° IP Rating : IP-64 Dimensions (H x W x D)260 x 200 x 280 mm Weight : 7.8 Kg

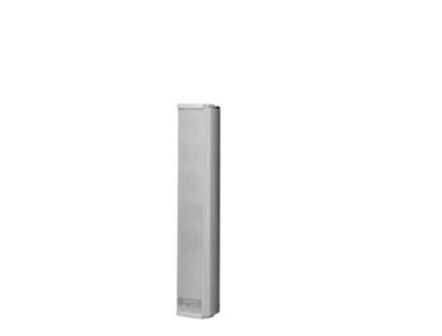

	COLS41 Speakers : 4 x 2” fullrange + 1 x 1” tweeter Lo-cut : yes 100 volt transformer power taps : 20-10-5 W Impedance : 8 ohm RMS power AES rated : 20 W Music power : 30 W SPL 1W/1M : 95 dB Frequency range : 250 Hz – 20 kHz Dispersion at 1 kHz - Hor/Ver : 165°/ 75° IP rating : 66 Dimensions H x W x D (mm) : 400 x 66 x 66 Weight (kg) : 2.0

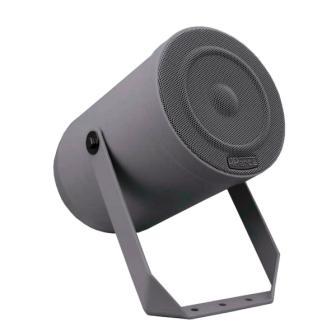

	MP26-G Type : Dual Cone / 6.5” Rated Power RMS : 26 W Music Power RMS : 35 W Sound Pressure Level (SPL) : 1w/1m 96 dB , max level 111 dB Frequency range : 90 Hz - 19 kHz Trafo Power Tappings : 26 - 20 - 10W Impedance 100 volt : 385 - 500 - 1000 ohm IP Rating : IP56 Dimensions diameter x length (mm) : 170 x 240 Mounting holes : 3 x Ø 6 mm, 30 mm spacing Speaker cable length : approx 40 cm Weight : 1.75 Kg

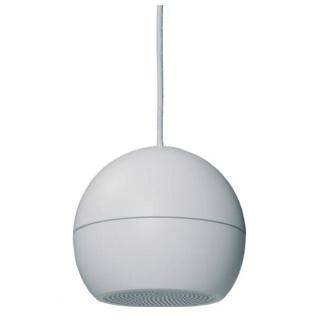

	SPH16 Type : 2-way hiFi Woofer : 5.25\" Tweeter : 1\" Impedance : 8 Ohm Transformer Power Tappings : 4 - 8 - 16 watts (2.5k - 1.25k - 625 Ohm) RMS Power 100V AES Rated : 16 watts Music - Program : 25 watts SPL 1 w/1 m : 92 dB Frequency Range : 80 Hz - 20 kHz Dispersion @ 1 kHz : 160° Dispersion @ 4 kHz : 70° Cable : 3m with metal safety cord IP Rating : 53 Dimensions (dia) : 180 mm Weight : 1.7 Kg

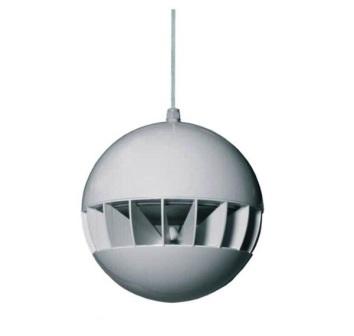

	SPH20 Type : Dual cone Woofer : 8\" Impedance : 8 Ohm Transformer Power Tappings : 5 - 10 - 20 watts (4k - 2k - 1k - 500 Ohm) RMS Power 100V AES Rated : 20 watts Music : 30 watts SPL 1 w/1 m : 99 dB Frequency Range : 80 Hz - 18 kHz Dispersion : 360° Cable : 3.3m with metal safety cord IP Rating : 63 Dimensions (dia) : 254 mm Weight : 2.3 Kg
