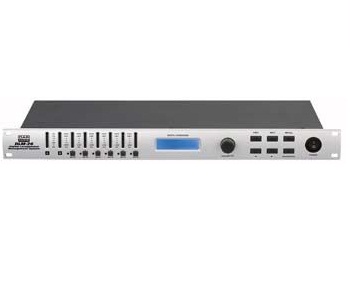

Article description:

Technical Info

Input Section
Input Impedance: 10 KOhm, electronically balanced
Maximum Input Level: +20dBu
Input Gain: +/-15dB variable in 0.1 dB steps
CMRR: Better than 50dB (30Hz-20KHz)
Input Connector: XLR-3F or equivalent

Output Section
Output Impedance: <50 Ohm, electronically balanced
Maximum Output Level: +20dBu into 600 Ohm or more
Output Gain: +/- 21 dB, variable in 0.1 dB steps
Output Connector: XLR-3M or equivalent Transformer Balancing optional

Crossover Filter
Slopes: 6, 12, 18, 24, or 48 dB per octave (depends on Filter type)
Type: Bessel, Butterworth, or Linkwitz-Riley

Delays
Delay Step: 21 us
Max. Delay time: 630ms

EQ / Max. no. of EQ filter: 60 (depending on crossover slopes)
EQ Type: Parametric, Bell or shelving on any filter. Nine filters assigned to Dynamic EQ.
EQ Gain: +/-15 dB, variable in 0.2 dB steps
Q (bandwidth): 0.05 to 3 octaves, variable in 0.05 steps
EQ freq.: 15 Hz to 20KHz
Dynamic Slope: 2:1 to 20:1 (dynamic EQ\'s only)

General Performance with filters out
Freq. resp.: 15Hz-20KHz, +/-0.25dB 15Hz-40KHz, +/-3dB
Dynamic Range: >112dB unweighted 22Hz to 22KHz, >117dB on AES/EBU input
Channel Separation: >80dB, 30Hz to 20KHz
Distortion (THD): <0.005%, 20Hz-20KHz @+10dBu output
Input Metering: -20dB, -12dB, -6dB, -3dB, CLIP relative to Clip point (+20dBu)
Output Meter Indication: SIG (-40dB), -20dB, -12dB, -6dB, -3dB, 0dB, OVER (+6dB) relative to limiter threshold setting

Dimensions: 482x225x47 mm (LxWxH)
Weight: 2,38Kg
AC Power: 90V-250V 50/60Hz
Fuse: T 1A

Détail Produit:

Technical Info

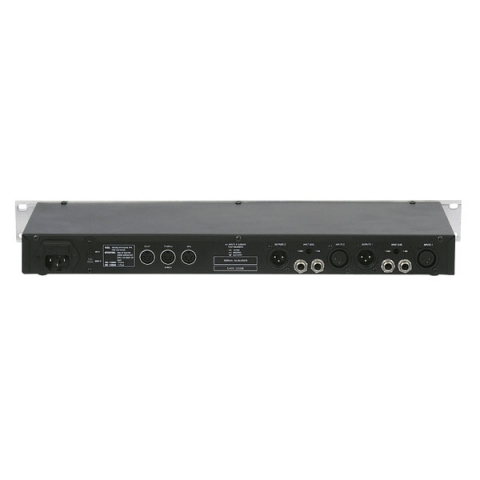

Analog Inputs
Connectors: XLR and 1/4\" jack
Type: RF filtered, servo balanced, 20kOhm unbalanced
Impedance: 40 KOhm balanced, 20 KOhm unbalanced
Nominal Operating Level: -20dB to +4dB
Max. Input Level: +16dB at +4dB nominal level, +2dB at -10dB nominal level

Analog Outputs
Connectors: XLR and 1/4\" jack
Type: Electronically servo-balanced output stage
Impedance:66 Ohm balanced, 33 Ohm unbalanced
Max. Output Level: +16dB at +4dB nominal level, +2dB at -10dB nominal level

System specifications
Bandwidth: 20Hz to 20KHz
S/N: 98dB, weighted, 20Hz to 20KHz
THD: 0.065%typ. @+4dB, 1KHz, Gain 1
Crosstalk: -95dB, 20Hz to 20KHz

MIDI Interface
Type: 5-Pin-DIN-Socket IN/OUT/THRU

Digital Processing
Converters: 24-bit Sigma-Delta, 64/128-times Over-sampling
Sampling Rate: 48KHz

Display
16x2 LCD-Display

Power Supply
Mains Voltage: 115VAC, 50-60Hz; 230VAC, 50-60Hz
Fuse: 115VAC:250mA; 230VAC:125mA

Power Consumption: 10W
Mains Connection: Standard IEC receptable

Physical
Dimensions: 482x170x47 mm (LxWxH)
Weight: 1,98 Kg
