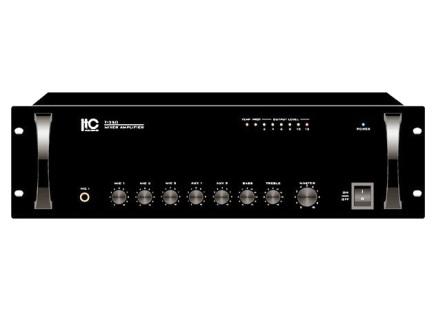

T-350 ; T-550

Model	T-350	T-550
Rated Power Output	350W	550W
Speaker Outputs	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input
	MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input
	AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input
	EMC: 775mV/10KΩ, Unbalanced RCA input
Output Sensitivity & Impedance	MIX OUT: 1000mV/470Ω, Unbalanced RCA output
Tone	Bass:±10dB at 100Hz
	Treble:±10dB at 10KHz
Frequency Response	50Hz~16KHz(+1dB, -3dB)
S/N Ratio	MIC 1, 2, 3: 66dB; AUX 1, 2: 80dB
THD	Less than 0.5% at 1KHz, 1/3 rated power
Muting Function	MIC 1 overrides other input signals
	with 0-30 dB attenuation
Crosstalk	≤50dB
Cooling	Fan automatically start up when temp reaches 55â„ƒ
Protection	High temp, overload & short-circuit
Power Supply	~110V/60Hz or ~230V/50Hz or DC 24V
Power Consumption	500W	750 W
Weight	18.5Kg	22.2Kg
Dimensions	484x385x132mm
Finish	Panel: aluminum plate, black Case: steel plate, black

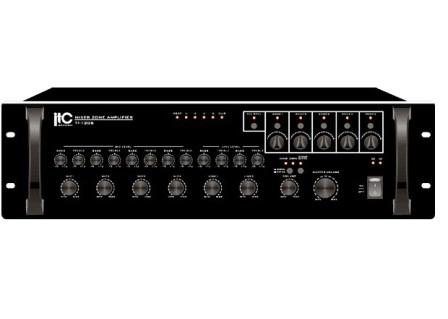

TI-120S ; TI-240S ; TI-350S

7 inputs 5 zone mixer amplifier
Rack mount amplifier in 3U type
Rated power output 120W, 240W and 350W
70V, 100V and 4-16ohm speaker terminals
5 zone 100V outputs and all zones outputs
4 balanced combined mic inputs of 1/4; phone jack and XLR type with separate gain control and phantom power swtich
2 dual RCA line inputs, TEL and EMC input
Each zone speaker output with separate volume control
Remote paging console T-318 for zone paging control
Built-in siren and 2/4 tone chime
Volume control over master, Mic1-4, Line1-2, chime, siren, all zone output and each 5 zone output, tel input and remote paging mic
5 levels of input priority from high to low: EMC input, tel input, remote paging console, Mic1, siren/chime over othe inputs
REC output for tape recorder
PRE Output and AMP input for extra signal processor
AC 110V or 220V and DC 24V operation

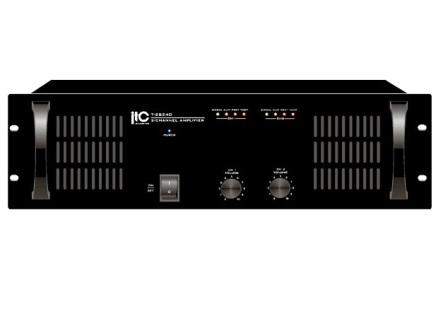

T-2S240/T-2S350/T-2S500

Model	T-2S240	T-2S350	T-2S500
Rated Power Output	2x240W	2x350W	2x500W
Speaker Outputs	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	±385mV/10KΩ, balanced XLR connector
Output Sensitivity & Impedance	±385mV/470Ω, balanced XLR output
Frequency Response	50Hz~16KHz(+1dB, -3dB)
S/N Ratio	ï¼‍90dB
THD	Less than 0.5% at 1KHz, 1/3 rated power
Crosstalk	ï¼œ50dB
Cooling	Fan automatically start up when temp reaches 55â„ƒ
Protection	Over heat, over load, clip & short circuit
Power Supply	~110V/60Hz or ~230V/50Hz or DC 24V
Power Consumption	720W	1000W	1200W
Weight	11.3 Kg	25.3 Kg	30Kg
Dimensions	484x385x88mm
Finish	Panel: aluminum plate, black Case: Steel plate, black
