MASTER SOUND MST-8

MST-8

Enclosure Type:  2-way full range

Components:   1.5\\\"+8\\\"

Nominal Impedance:   8ohm

RMS Power Handling:  150W

Peak Power Handling:  300W

Frequency Response:  65Hz-20 KHz

Sensitivity (1W/1M):     99dB

Max. SPL:   123dB

Dispersion (HxV):    50º-100¡ãx55¡ã

Crossover:   1.8 KHz

Dimensions (HxWxD):  426x275x230mm

Packing Dimensions:   505x370x320mm (0.06CBM)

Net/Gross Weight (Kg):  11/12.5

•

MASTER SOUND MST-10

MST-10

Enclosure Type:     2-way full range

Components:   1.5\\\"+10\\\"

Nominal Impedance:   8ohm

RMS Power Handling:  200W

Peak Power Handling:  400W

Frequency Response:  58Hz-20 KHz

Sensitivity (1W/1M):     100dB

Max. SPL:   124dB

Dispersion (HxV):    50º-100¡ãx 55¡ã

Crossover:   1.8 KHz

Dimensions (HxWxD):  515x326x277mm

Packing Dimensions:   595x420x370mm (0.09CBM)

Net/Gross Weight (Kg):  15/17

•

MASTER SOUND MST-12

MST-12

Enclosure Type:     2-way full range

Components:   2\\\"+12\\\"

Nominal Impedance:   8ohm

RMS Power Handling:  250W

Peak Power Handling:  500W

Frequency Response:  55Hz-20KHz

Sensitivity(1W/1M):     102dB

Max. SPL:   126dB

Dispersion(HxV):    50º-100¡ãx 55¡ã

Crossover:   1.77KHz

Dimensions(HxWxD):  605x380x320mm

Packing Dimensions:   670x465x405mm(0.13CBM)

Net/Gross Weight(Kg):  20/23

•

MASTER SOUND MST-15

MST-15

Enclosure Type:     2-way full range

Components:   2\\\"+15\\\"

Nominal Impedance:   8ohm

RMS Power Handling:  350W

Peak Power Handling:  700W

Frequency Response:  55Hz-20 KHz

Sensitivity (1W/1M):     103dB

Max. SPL:   128dB

Dispersion (HxV):    50º-100¡ãx 55¡ã

Crossover:   1.65 KHz

Dimensions (HxWxD):  700x455x370mm

Packing Dimensions:   765x550x455mm

Net/Gross Weight (Kg):  29.5/32.5

•

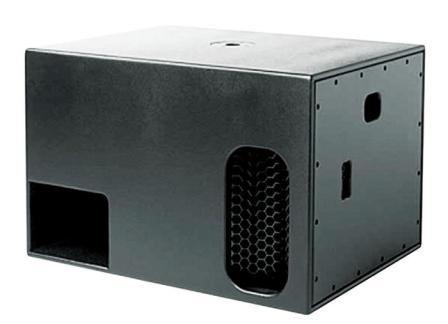

MASTER SOUND MST-118

MST-118

Enclosure Type:     Subwoofer

Components:   1x18\\\"

Nominal Impedance:   8ohm

RMS Power Handling:  500W

Peak Power Handling:  1000W

Frequency Response:  45Hz-400Hz

Sensitivity (1W/1M):     105dB

Max. SPL:   135dB

Dispersion(HxV):    N/A

Dimensions(HxWxD): 515x795x600mm

Packing Dimensions:

Net/Gross Weight (Kg):  52.5/56

•

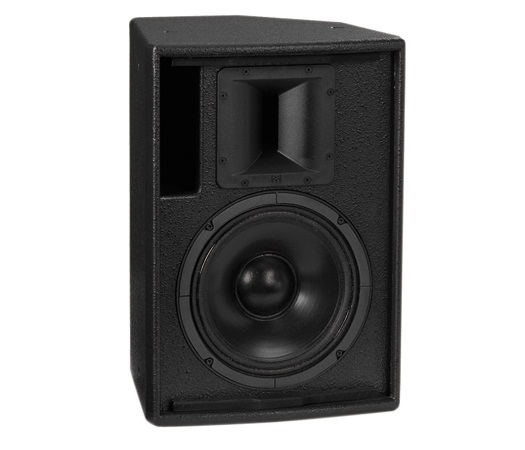

MF-8

Components:   1\"+8\"

Nominal Impedance:   8ohm

Power Handling:  150W

Frequency Response:  70Hz-20KHz(¡À3dB)

Sensitivity(1W/1M):     93dB

Max. SPL:   113dB(continuous), 119dB(peak),

Dispersion(HxV):    90¡ãx 50¡ã

Crossover Point:   2.5 KHz

Connector:  SPEAKON

Flying Hardware:  M8 rigging point

Dimensions(HxWxD):  299x435x269mm

Net Weight(Kg):  12
