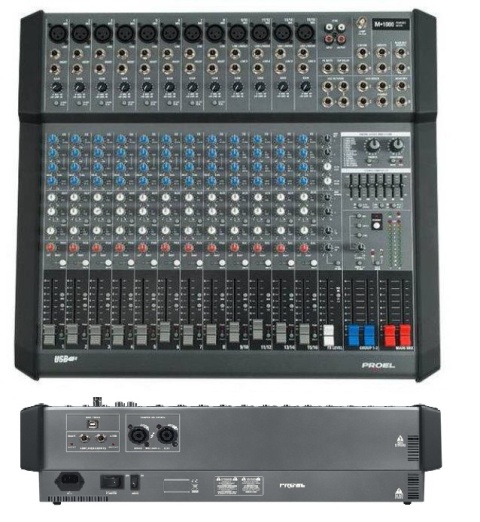

The M1000USB, the amplified version of model M16USB, is the most advanced expression of an amplified mixer. Beside a sophisticated mixer section which can control the most demanding situations, M1000 USB includes a light and compact 500W-per-channel digital amplifier which employs state-of-the-art amplification technologies, such as final stages with PWM technology and a switching power supply section. Thanks to two dedicated input connectors on the rear panel, M1000USB can be used to amplify the main program as well as the monitor outputs or any other external source. Protection during transportation is guaranteed by an extremely rugged bag provided with metal reinforcements, whereas standard 19” rack mount is guaranteed by the adaptors provided.
Datasheet
System type :
16 inputs mixer with digital effects & USB
Power Supply :
230VAC 50/60Hz or 117VAC 50/60Hz
Phantom power :
+ 48 V all mono input
Output Power
(THD<1% 1kHz)
Stereo 4+4ohm :
500 W + 500 W RMS
Input Connectors :
Mic Input Balanced XLR-F - Combo
Line Input Balanced TRS Jack
USB
Inputs :
12 MIC - 8 Line - 4 stereo line - USB
Input Sensitivity :
Mic Input from 0 to -60 dB
Line Input from +20 to -40 dB
Input Impedance :
Mic Input 2 Kohm
Line Input 10 Kohm
Output Connectors :
Balanced TRS Jack and / or XLR-M - USB
Outputs :
CROOM - MAIN MIX - GROUP 1-2 - AUX 1, 2 & 3 - PHONES - USB
Amplifier Output :
2 x SPEAKON
Output Levels :
MAIN MIX nom. out level +4 dBu - all other outputs 0 dBu - Maximum level all outputs +22 dBu
Headphones output impedance :
min. impedance 32 ohm - max. out level (2x) 193 mW
Distortion (THD+N) :
at +4dB, 1kHz < 0,008 %
Mono Input
channel equalization :
Lo Cut 75 Hz, 18 dB/oct.
HIGH (shelving) ±15 dB @ 12KHz
MID (peaking) ±15 dB from 100 Hz to 8 kHz
LOW (shelving) ±15 dB @ 80Hz
Stereo Input Channel Equalization :
HIGH (shelving) ±15 dB @ 12KHz
HI-MID (peaking) ±15 dB @ 3 KHz
LO-MID (peaking) ±15 dB @ 500 Hz
LOW (shelving) ±15 dB @ 80Hz
Incorporated effects :
HALL, ROOM, VOCAL and PLATE reverbs,
MONO, STEREO and TAP DELAY,
CHORUS and FLANGER,
REV + DELAY, REV + CHORUS and REV + FLANGER
16 step PRESET selector
16 step VARIATION selector
PEAK LED
MUTE and TAP DELAY switch
with LED indicator and footswitch
Damping Factor :
>500 @ 4 ohm
Maximum Power Consumption :
1100 VA
Frequency response :
20Hz - 20kHz (+/- 0.5dB)
Noise :
unweighted < -93 dBu
Protections :
DC voltage, short circuit, thermal, soft start
Cooling :
variabile speed DC fan
Weight :
9.3 kg(20.507lb )
Dimensions (W x H x D) :
48.5 x 14 x 43.5 cm
Technical notes :
Carrying bag and 19” rack adapters included
7-band stereo assignable graphic equalizer

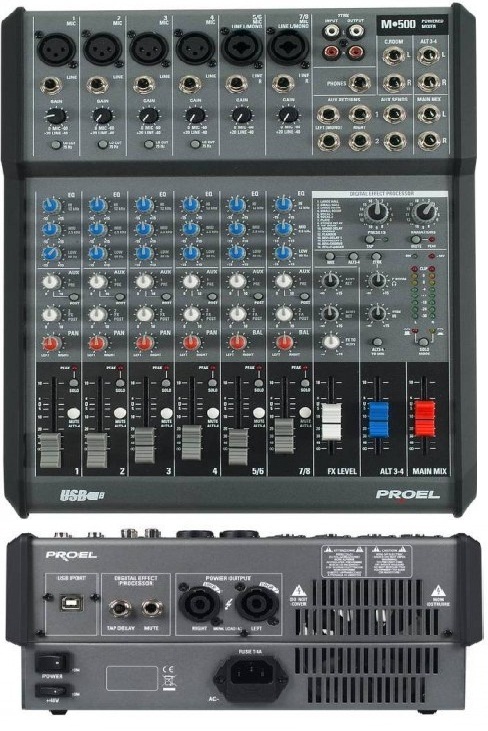

PROEL M500
Incorporated effects HALL, ROOM, VOCAL and PLATE reverbs, MONO, STEREO and TAP DELAY, CHORUS and FLANGER, REV + DELAY, REV + CHORUS and REV + FLANGER 16 step PRESET selector 16 step VARIATION selector PEAK LED MUTE and TAP DELAY switch with LED indicator and footswitch.
Weight: 5.7 kg(12.568lb )
Dimensions: 28 x 12.5 x 35.2 cm
Powered 8 channel small format console style mixer featuring 2 x 250w at 4 ohms power output with 6 mono and 2 stereo inputs.

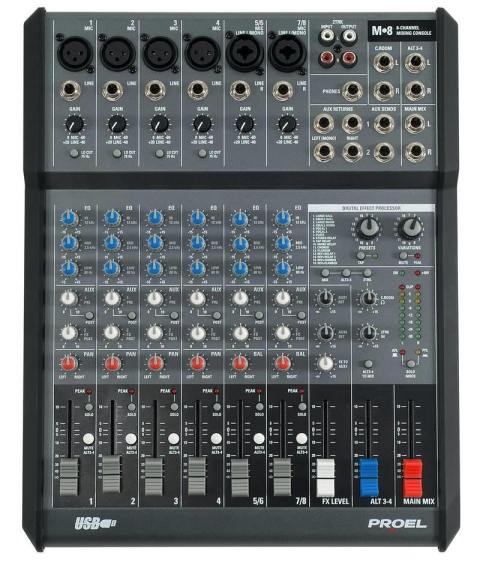

PROEL M.8 USB 500W
HALL, ROOM, VOCAL and PLATE reverbs, MONO, STEREO and TAP DELAY, CHORUS and FLANGER, REV + DELAY, REV + CHORUS and REV + FLANGER 16 step PRESET selector 16 step VARIATION selector PEAK LED MUTE and TAP DELAY switch with LED indicator and footswitch.
Weight: 3.1kg(6.836lb )
Dimensions: 28 x 8 x 35.2 cm
The M.8 USB model gives you the possibility to connect up to 6 microphones and features a complete set of functions
