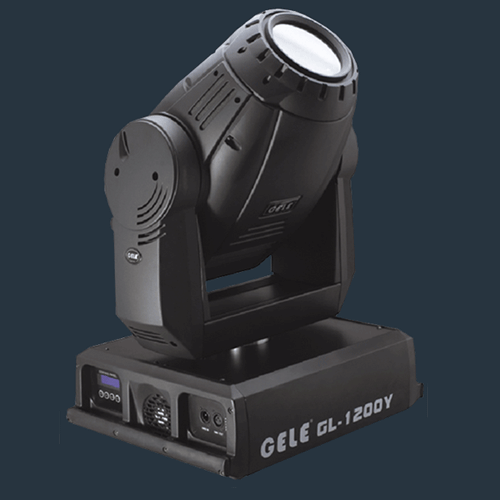

Lamp : HMI 1200W/D7/60 or CSR 1200SA
Voltage: AC220 230V 50HZ
Control channel Optional: 16/18/20
512 signal Receiving
4 rotating standard prism overlap
Two pattern plate
2 gobo wheels, 7 colors + open white, rainbow effect
Optional color temperature 3600-6000K
Maximum ambient temperature 40 ℃, the maximum
surface temperature 75 ℃, the highest noise 45DB
Machine size: L500 * W400 * H740MM
Weight: 55KG
the cable according to GE 20/22;
housing: IP20; up to GB 7000.15-2000 standard.

Product Description

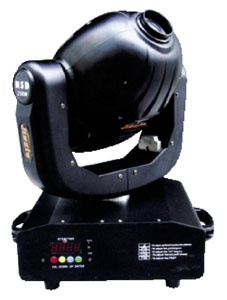

SKILL SPECIFICATIONS
Voltage: 220-240/110-120V 50-60Hz
Rotated power consumption: 350W
Bulb: MSD 250W
Color temperature: 3500K
Channel: 9 DMX channels
Flash: Dimmer, flash rate: 1-10/second, speed controllable
Pan Max: 450 degree Tilt Max: 276 degree
Color wheel: One color wheel/7 basic color+open/with half-color switch and high speed rainbow effect
Gobo rotate: One rotating gobo wheel with bi-directional rotate effect, speed adjustable

Speed adjustment: Pan/Tilt 0-255 speed controllable
Reposition: Photo-electronic reposition system, both with self-correction function
Over heat protection: With one 95 over heat protection thermostat
Outline size: 340*360*580mm
Packing size: 480*440*530mm
N/W: 20.5KG
G/W: 23KG

Product Description

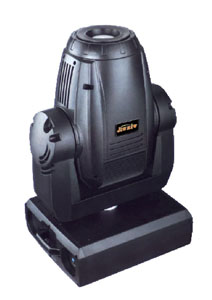

SkILL SPECIFICATIONS
Power: 110V220V/50Hz60Hz
(The other power can order)
Power Consumption: 680W
Lamp: HMI 575
Control Signal: DMX512
Control Channels: 16CH
N. W: 41KG
G. W: 45KG
Size: 520*520*770(mm)
